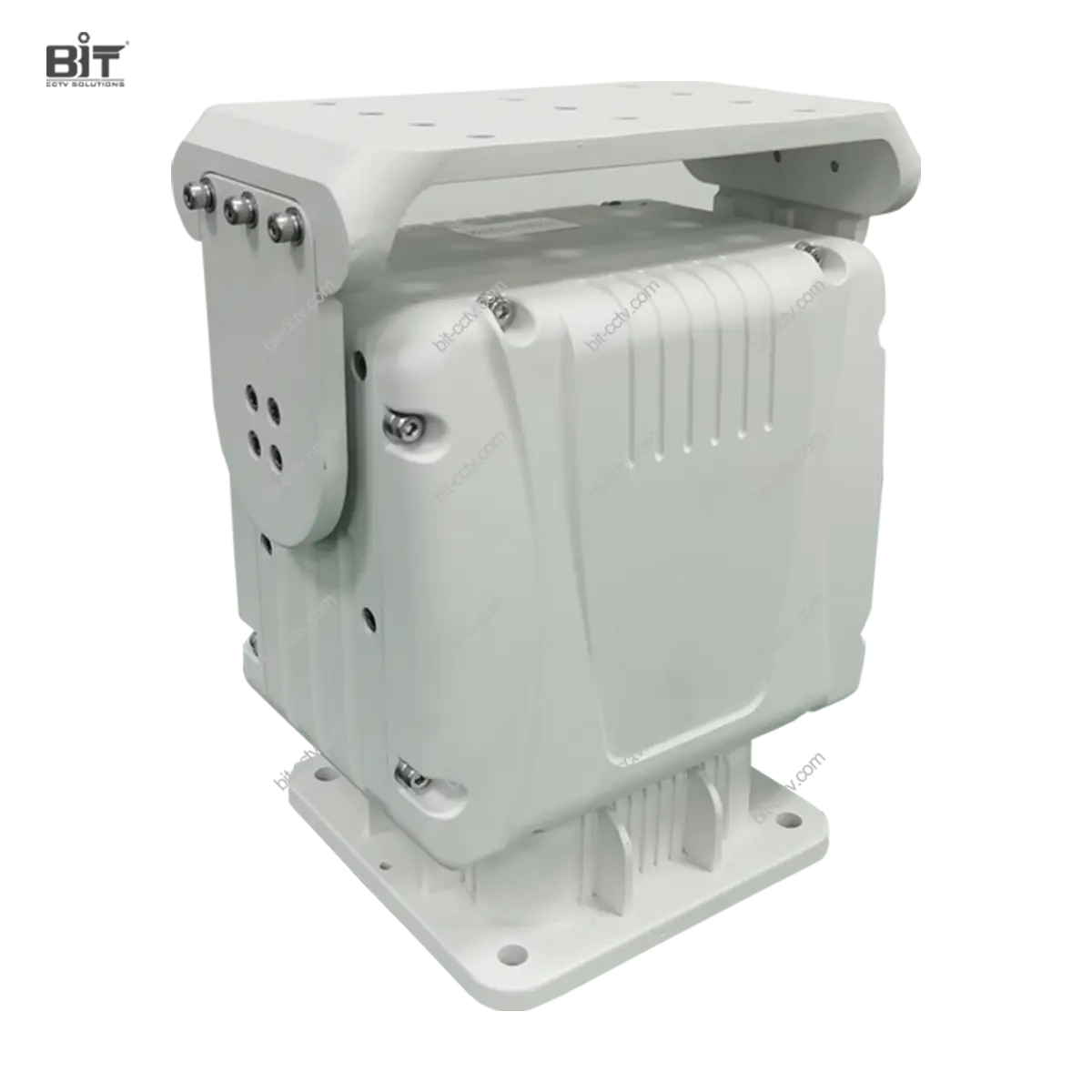

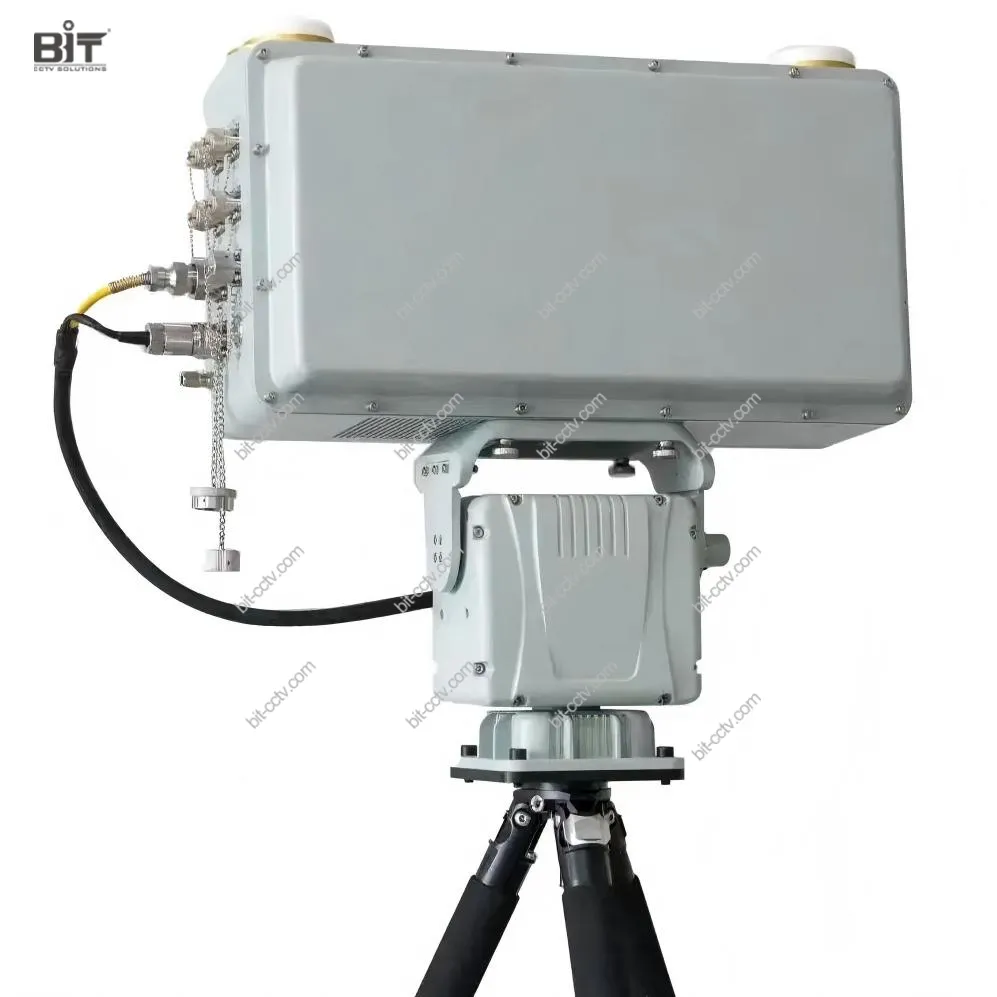

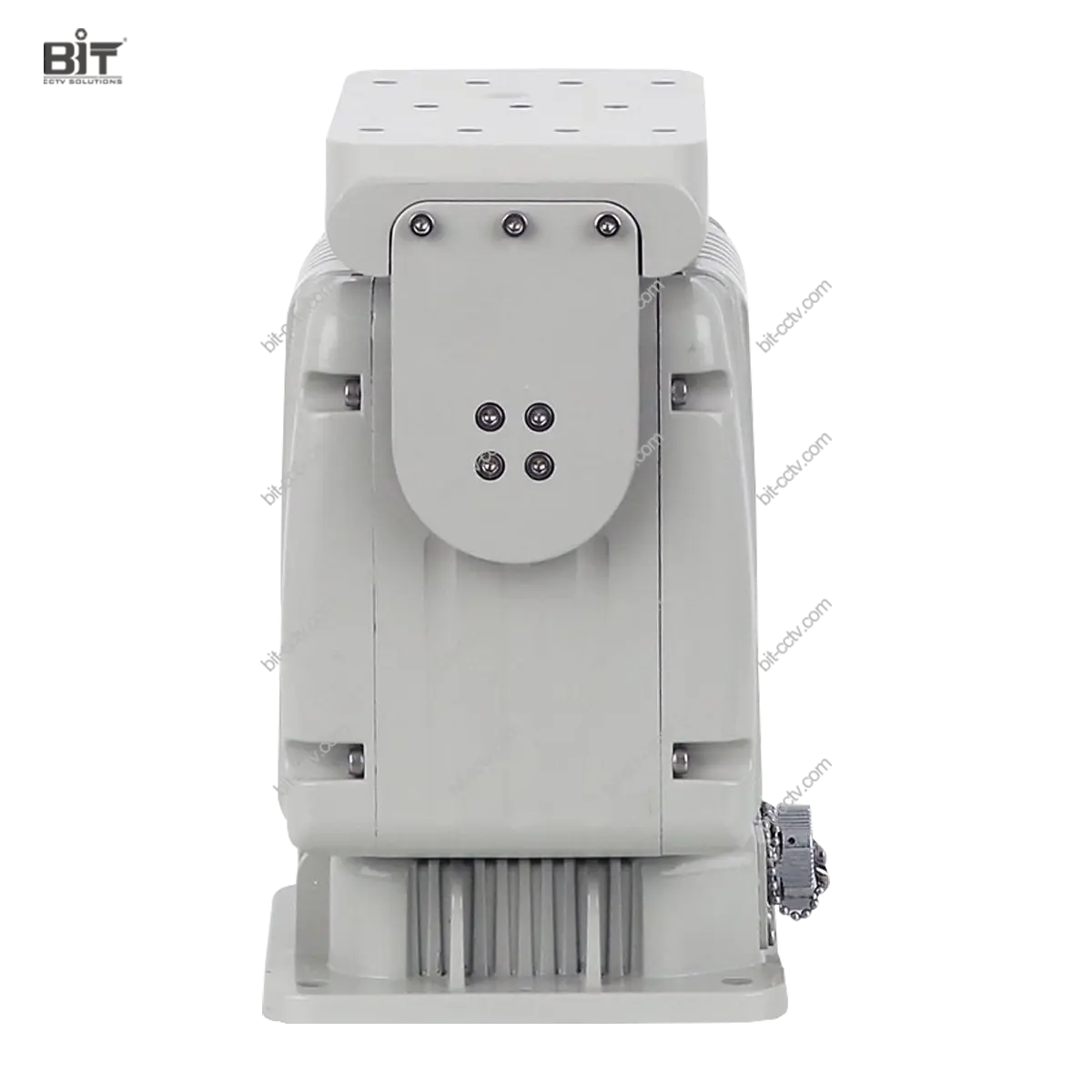

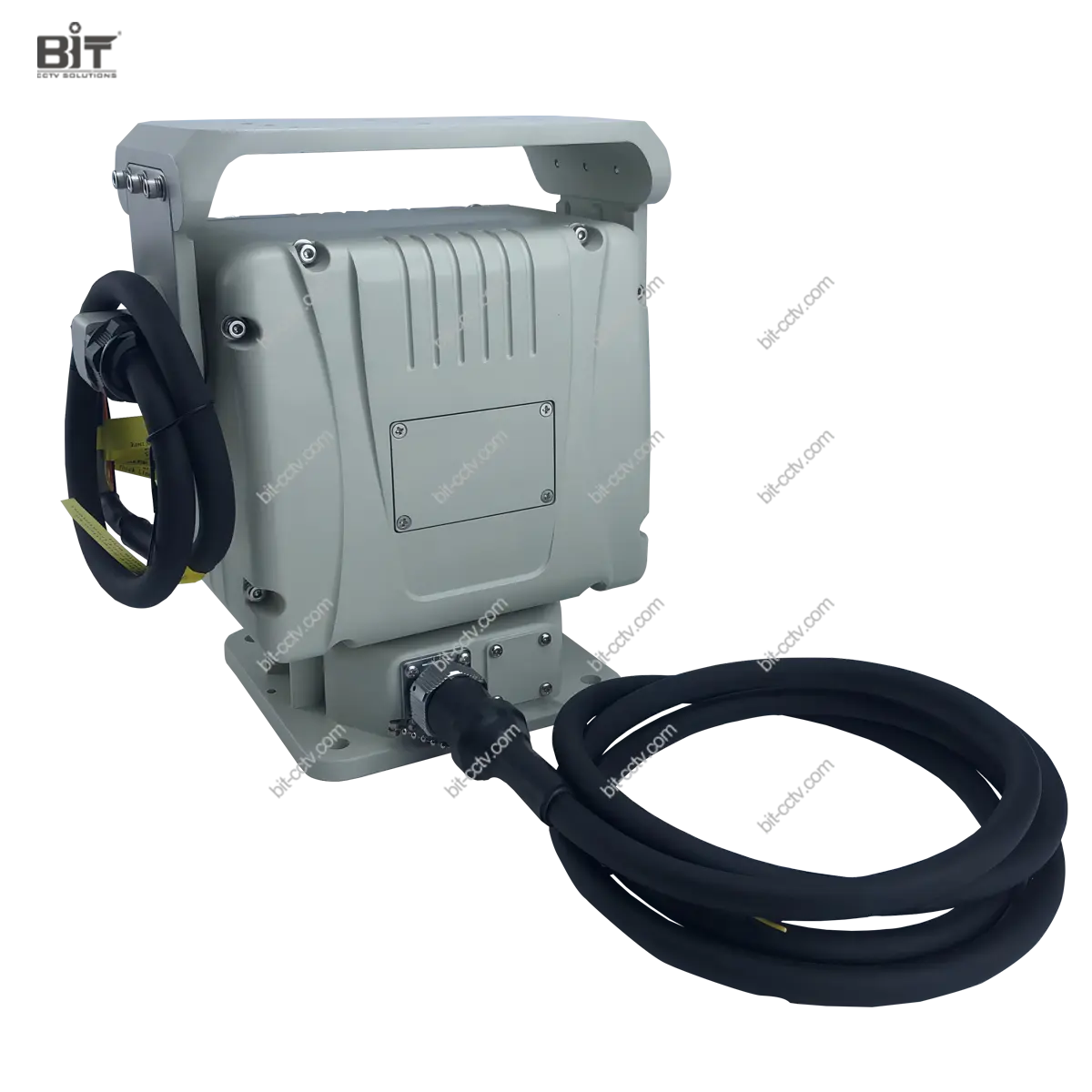

Outdoor Mini Size Worm Gear Variable Speed Pan Tilt Head Positioner Max. 10kg (20.05lb) Load

Features of BIT-PT510 Mini Size Worm Gear Outdoor Variable Speed Light Duty Pan Tilt Head with Payload up to 10kg (20.05lb)


  • Maximum top load capacity 10kg (22.05lb)

  • Pan angle: 0-360°, tilt angle: -45°~-+45°

  • Pan speed: 0.01°~30°/S, tilt speed: 0.01°~15°/S

  • Preset accuracy: ±0.1°

  • High precision stepper motor, worm/gear drive transmission

  • Self-lock with memory after power failure

  • RS485 or RS422 pan tilt control with Pelco P/D protocol

  • Support position feedback and absolute position

  • Mini size: 223*140*235mm

  • Optional upside down installation

  • Rated IP66 for dust and water ingress



Overview of BIT-PT510 Mini Size Worm Gear Outdoor Variable Speed Light Duty Pan Tilt Head with Payload up to 10kg (20.05lb)


BIT-PT510 is a mini size light duty unit (Max. top load capacity 10kg (22.05lb) by using high accurate gear drive transmission, an ideal choice for compact pan tilt positioning system. With competitive pricing, its quality and features are still good enough to build a reliable PTZ camera. It features variable speed rotation, preset position, cruising track, patter tour, auto scan and advanced functions like coordinate feedback and absolute control.


Technical Specifications of BIT-PT510 Mini Size Worm Gear Outdoor Variable Speed Light Duty Pan Tilt Head with Payload up to 10kg (20.05lb)



Model

BIT-PT510

Max. Load Capacity

10kg (22.05lb), top load

Upside Down InstallationOptional

Rotation Angle

Pan: 360° continuous, Tilt: -45°~+45°

Rotation Speed

Pan: 0.01°/s-30°/s , Tilt: 0.01°/s-15°/s

Preset

200

Preset Accuracy

± 0.1°

Cruising Track

Support

Scan

1

Position Query/Feedback

Support position query feedback/real-time feedback

Absolute PositioningSupport

Homing

It can be set up within the time period of 1~60 min

Start Calibration

A series of movements for calibration when the unit is powered on. External cabling may twist during the start movement.

Power Failure Memory

Support, recover to PT position, scan/preset/cruising track movement before power failure

Self-lock

Support

Protocol

Pelco P/D

Baud Rate

2400/4800/9600/19200 bps

Communication Interface

RS485 or RS422

Transmission

Worm/Gear transmission in both pan and tilt direction

Wiring/Interface

Pan Tilt Base

100M Ethernet with RJ45 (4 wire, pass-through), RS485 P/T control Input (2 wire), 24V DC Input (2 wire), GND

Pan Tilt Top

100M Ethernet with RJ45 (4 wire, pass-through), RS485 P/T control Input (2 wire)

12V DC @1.5A Output (2 wire), 24V DC@1.5A output(2 wires), GND

General

Operating Voltage

DC24V±10 %

Power Consumption

≤30W

Working Temperature

-35ºC~+65 ºC

Working Humidity

90±5% RH

Storage Temperature

-40 ºC~+70 ºC /-40 ºF ~ 158 ºF

Protection Level

IP66

Material

Aluminium Alloy

Weight

5.5kg (12.13lb)

Dimension

223×140×235mm(L×W×H)

8.78x5.51x9.25in (L×W×H)




Video

Dimension of BIT-PT510 Mini Size Worm Gear Outdoor Variable Speed Light Duty Pan Tilt Head with Payload up to10kg (20.05lb)



Unit: mm


FAQs of BIT-PT510 Small Size Worm Gear Outdoor Variable Speed Light Duty Pan Tilt Head with Payload up to10kg (20.05lb)

  • What are the differences between BIT-PT410 and BIT-PT510 with the same load capacity of 10kg (22.05lb)?

    Both BIT-PT410 and BIT-PT510 are 10kg top load pan tilt unit/positioner.

    Mainly there are 3 differences between these 2 models:

    1) BIT-PT510 is much smaller than BIT-PT410, which is more suitable for small/compact PTZ camera system.

    2) In terms of drive mode, BIT-PT410 is worm/gear drive in tilt direction, while belt drive in pan direction and BIT-PT510 is worm/gear drive in both pan and tilt direction. BIT-PT410 has only self-lock in tilt direction.

    3) With belt transmision in pan direction, BIT-PT410 has a fast pan speed of 100°/s.


  • Will BIT-PT510 snall size light duty pan tilt unit continue its working situation if it powers on again from a power failure?

    Yes, BIT-PT510 pan tilt head features self-lock and power failure memory. It will be able to stay where it was when a power failure occurs even in windy weather and resume its movement like presets, scan before power failure.


  • Is non-continuous pan rotation feature available on BIT-PT510 cost-effective pan tilt head?

    Yes, we can customize non-continuous pan rotation BIT-PT510 pan tilt unit if continuous 360 degree pan rotation will be a problem for your system. Please let us know the angle that you prefer while placing your order.


  • Can BIT-PT510 10kg top load small size pan tilt unit be installed upside down?

    Yes. BIT-PT510 can be installed upside down with enhaned design.
