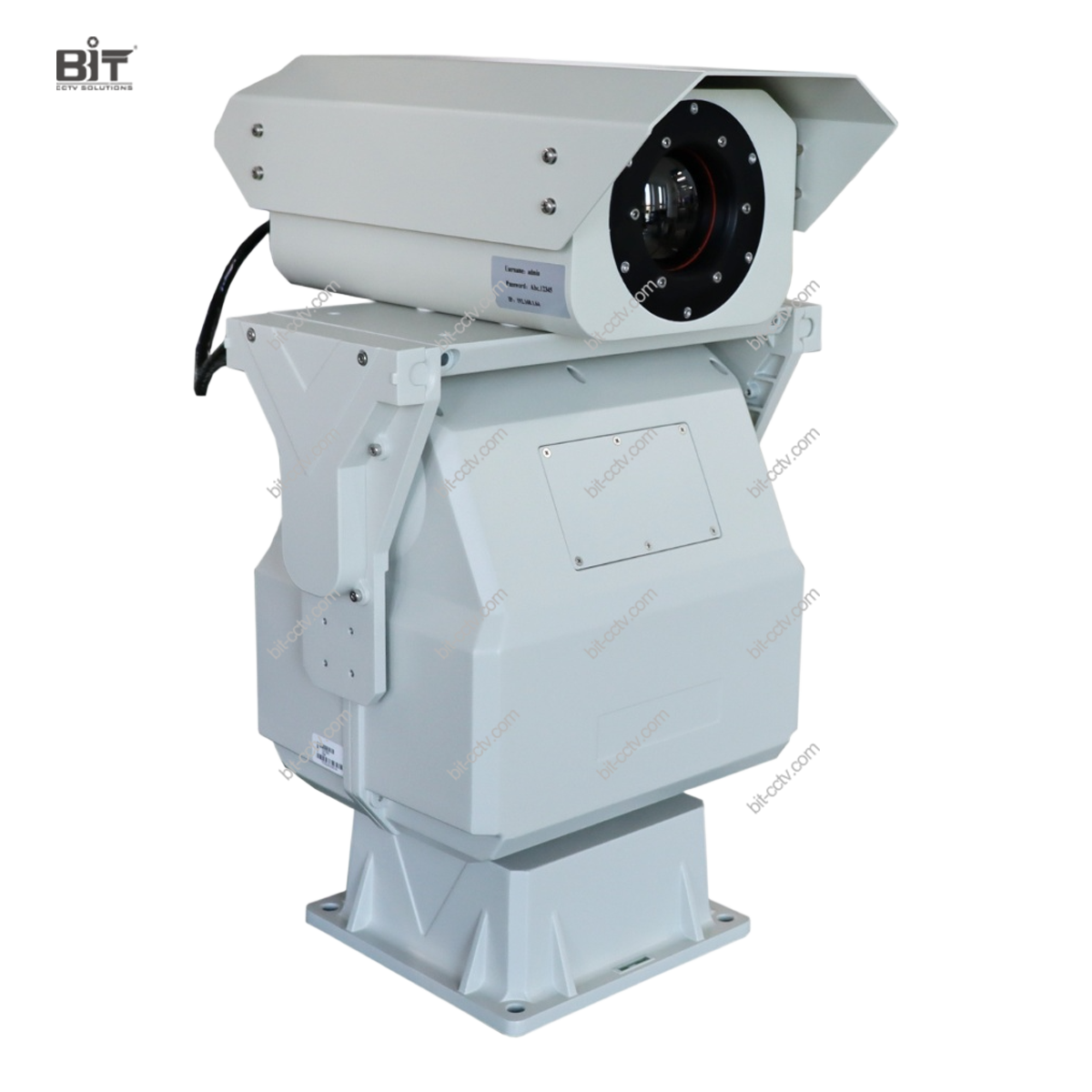

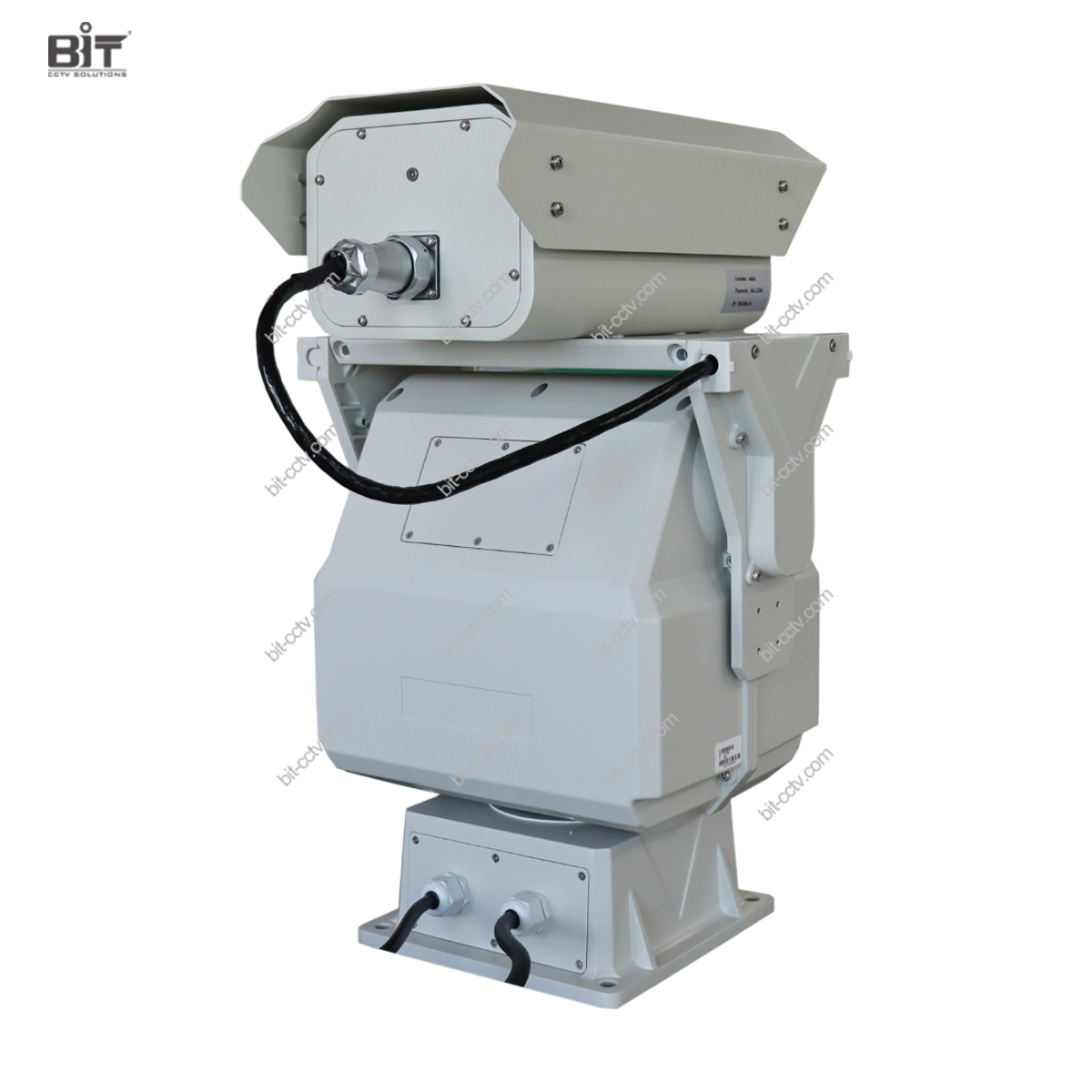

Long Range Thermal Imaging PTZ Camera

Features of BIT-SN07-W Long Range Thermal Imaging PTZ Camera


  • VOx uncooled detector, 384*288 (640*512)

  • NETD less than 50mk (@25℃F1.0)

  • 25~75mm lens with motorized zoom and focus

  • Detection range 6.5km, recognition range 1.8km

  • SDE digital image processing, AGC, 2X digital amplification

  • 360 continuous pan angle, tilt angle: -75°~+40°

  • Pan: 0.1°/s-60°/s , tilt: 0.1°/s-30°/s rotation speed

  • Die-cast aluminum alloy housing, IP66 ingress protection


Overview


BIT-SN07-W, a long range infrared thermal imaging PTZ camera is based on the latest uncooled IR sensitive technology and continuously IR optical zoom. User could get a best imaging details with 384*288/640*512 resolution uncooled FPA sensor, advanced digital circuit and image processing algorithm. Special design of 25~75mm optical zooming lens have detection distance 6.5km, suitable for both seeking and viewing. Die-cast aluminum alloy housing makes sure the camera’s operation outdoor.


Our thermal camera integrate high sensitive FPA sensor, electronic and optical systems, and features  fog/dirt/rain/snow penetration with 24 hours’ image.


Application Scenario: Applicable in large-scenarios, such as: smart city, high-spot watching, mobile&traffic, railway&freeway, prison, harbor, maritime, plant, oil fields, electricity, public security and fire-fighting, forest fire prevention, scenic sights and etc.


Technical Specifications


Model

BIT-SN07-W

Detection

Vehicle: 6,500m/Human: 2,500m

Recognition

Vehicle: 1,800m/Human: 700m

Sensor

5th generation UFPA sensor

Resolution

384*288 pixel ( 640*512 optional)

Spectral

7.5~14μm

NETD

50mK(@25℃ F1.0)

Focal length

25~75mm

FOV(H)

13°~4.3°

IFOV

0.22~0.68mrad

Lens control

Motorized zoom and auto focus

Network Protocol

ONVIF2.4 compliant

TCP/IP, UDP, IPv4/v6;

Support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP

Support PSIA

Image processing

1.  Stable operational temperature without TEC, starting time less than 4 seconds

2.  SDE digital image processing

3.  10 pseudo color and B/W, B/W inverse

4.  AGC

5.  2X digital zoom

Housing

1. Material:High strength die-cast aluminum alloy, waterproof seal, avoid the growth of mold and moisture

2. Structure:Integrated single-window design

3. Surface coating:PTA three-resistance coating, seawater corrosion resistance

4. Interface:Aviation waterproof connector

Pan Tilt

1. Rotation: Pan: continuous 360°, tilt: -75°~+40°

2. Rotation speed: Pan: 0.1°/s-60°/s , tilt: 0.1°/s-30°/s

3. Positioning accuracy: 0.1°

4. Advanced movement: 200 preset positions, cruising track, pattern tour and auto scan

5. Support coordinate query/feedback and absolute control

Interface

1. RJ45.10, 10/100 Base-T adaptive

2. AC24V/DC24V ±10%, self-adaptive

3.  Optional RS-485 (PELCO D/P protocol)

4.  Waterproof connector

Environment

1. Operating temperature:-40℃~+65℃

2. Storage temperature:-40℃~+65℃

3. Humidity:<90%

4. Ingress protection:IP66


FAQs of BIT-SN07-W Long Range Thermal Imaging PTZ Camera

  • What Is The Infrared Camera Used In Long Range Thermal Imaging PTZ Camera BIT-SN07-W?

    It is a thermal camera with the latest uncooled IR sensitive technology, with NETD 50mK. Standard resolution is 384*288 pixel with higher option: 640*512.


  • Is It A Fixed Lens Or Zoom Lens Applied Inside PTZ Infrared Camera BIT-SN07-W?

    A motorized zoom and focus lens with 25~75mm focal length is used in infrared PTZ camera BIT-SN07-W for long range surveillance.


  • What Is The Maximum Detection And Recognition Range Of Long Range PTZ Thermal Camera BIT-SN07-W?

    Maximum detection and recognition distance of long range thermal imaging PTZ camera BIT-SN07-W is:

    Detection Range: Vehicle: 6,500m/Human: 2,500m

    Recognition Range: Vehicle: 1,800m/Human: 700m


  • What Is The Working Temperature Of Long Range Infrared PTZ Camera BIT-SN07-W?

    Working temperature of long range PTZ infrared camera BIT-SN07-W is -40℃~+65℃.
