Maximum pan load capacity 15kg (33lb)
Rather small size, 4kg, 170mm diameter top plate
Die-cast aluminum material
360 degree continuous pan rotation
Pan speed 0.01°～30°/S
Preset accuracy: ±0.1°
High precision worm/gear drive and stepper motor transmission
Self-lock with memory after power failure
Support coordinate feedback and control
Support lens preset, adaptive speed to zoom rate
Rated IP66 for dust and water ingress

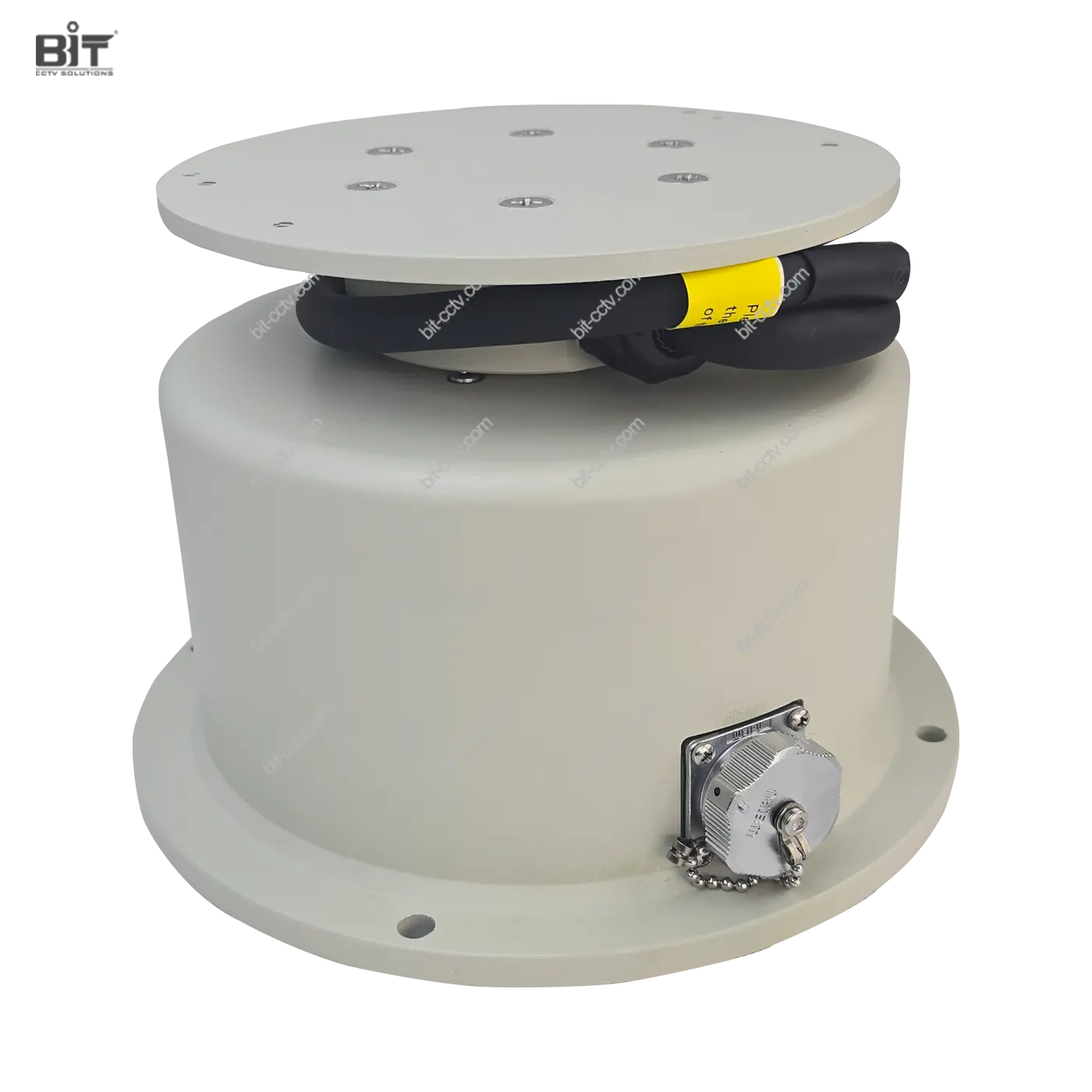

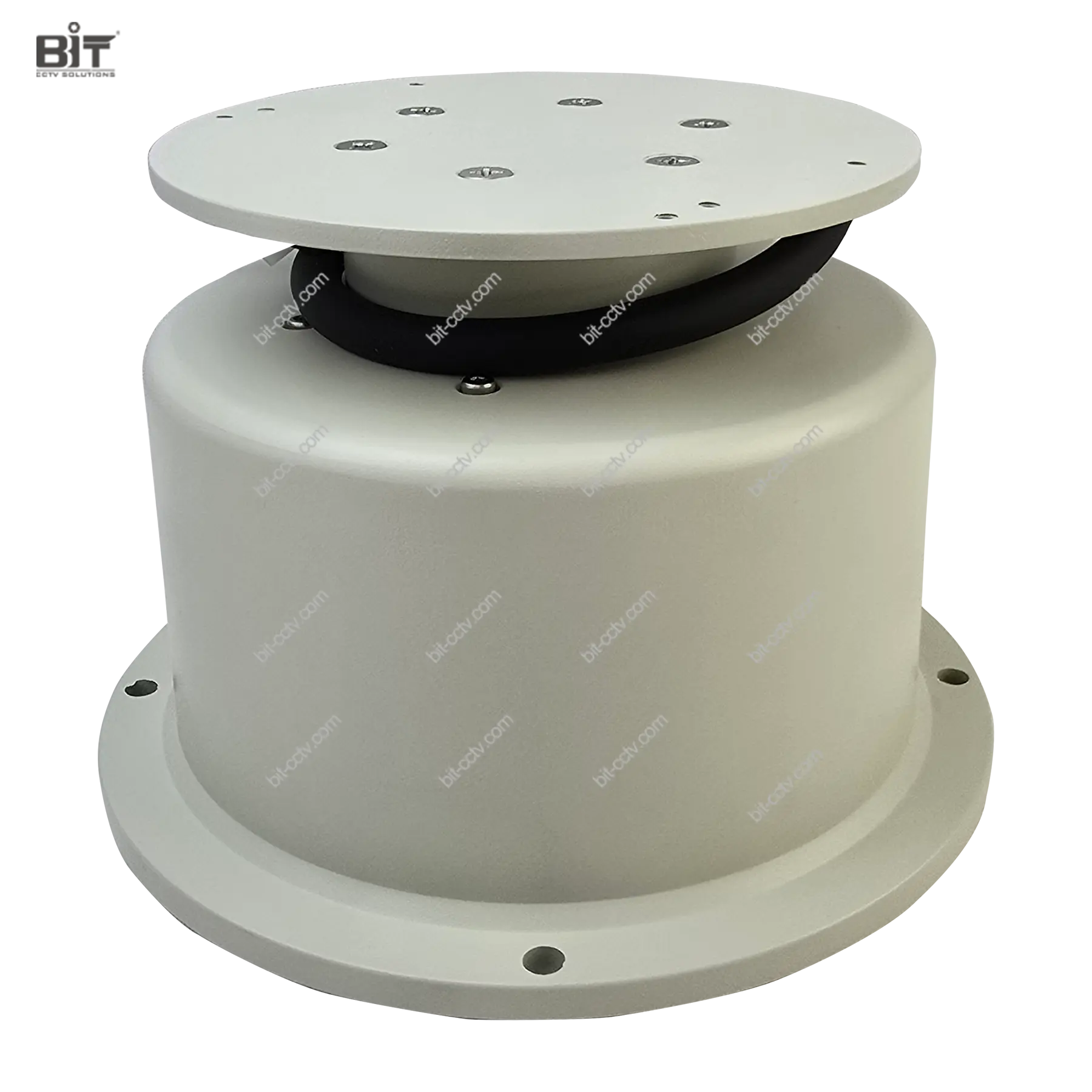

BIT-SPT015, only 4kg weight, is a light duty single-axis pan rotatory unit that will only rotate in pan direction, but not tilt direction. With worm/gear drive transmission, 15kg load capacity with rotation speed up from 30°/S. It is made of die-cast aluminum material and equipped with default dual military style connectors. Many other advanced features are available on BIT-PT005, including preset, cruising track, auto scan and guard location.
Model | BIT-SPT015 | ||
Rotation Speed | Pan 0.01°～30°/S | ||
Rotation Angle | Pan 0-360° continuous rotation（Optional limited angle） | ||
Preset | 255 | ||
Repeat Accuracy | ±0.1° | ||
Positioning Angle Resolution | 0.01° | ||
Angle, Focal Length Feedback | Optional | ||
AUX | Optional 2 groups | ||
Cruising Track | 8, each with 10 positions | ||
Guard Location | Back to home position in 1～60 min | ||
Auto Scan | 1 | ||
Communication | PELCO_D/PELCO_P | ||
Baudrate | 9600bps（optional 2400/4800/9600/19200 bps） | ||
Interface | RS485（optional RS485/RS422/RS232） | ||
General | |||
Power Input | DC24V | ||
Consumption | Max≤40W/Standy 5W | ||
Working Temperature | -25℃～+55℃, 90%±3%, no condensing（optional -40℃～+55℃） | ||
Storage Temperature | -40℃～+65℃ | ||
Load Capacity (Rotation Diameter：150mm) | 15kg (33lb) | ||
Dimension (mm) | 225x225x150mm (8.66x8.66x5.9in) | ||
Weight | 4Kg (8.82lb) | ||
Load Type | Top load | ||
Drive Transmission | Worm gear transmission | ||
Protection | IP66 | ||

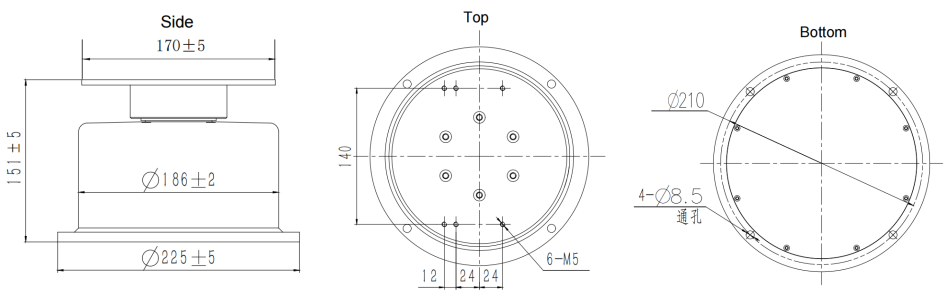

Unit: mm
No, BIT-SPT015 is a single-axis pan rotation unit that will only rotate in pan direction, but not tilt direction.
Yes, with worm/gear drive design, BIT-SPT015 features IP66 water proof, wind-resistance and self-lock after power failure for outdoor windy environment application.
No, it has to be one of those three configurations between 5kg, 8kg and 10kg load capacity. Please let us know the total weight that you expect BIT-SPT015 to load while placing order with us.
BIT-SPT015 has optional low temperature sensor and heating component to work in as low as -40℃ outdoor situation. Please do let us know if you need this feature.
