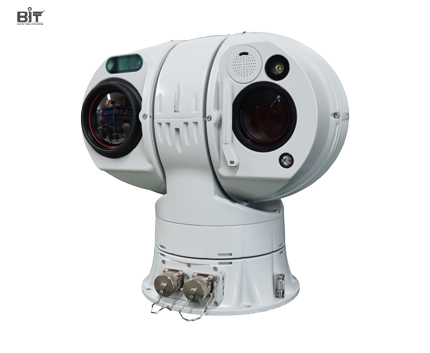

BIT-TVC4516W-1930-IP HD Visible and Thermal Imaging Dual Vision PTZ Camera

Name: BIT-TVC4516W-1930-IP HD Visible and Thermal Imaging Dual Vision PTZ Camera
Brand: Blue Icon (Tianjin) Technology Co., Ltd.

Specialized in Design, Engineering & Manufacturing of
High-Quality CCTV Surveillance Equipments for More than 15 Years!

Features of BIT-TVC4516W-1930-IP HD Visible and Thermal Imaging Dual Vision PTZ Camera

Vox uncooled thermal camera, 384*288/640*512 resolution

31～155mm lens for thermal camera, motorized zoom and auto focus

Detection range 10.2km, recognition range 2.4km

1080P HD visible network camera, 4.3~129mm lens

360 continuous pan rotation, tilt angle: -75°~+40°

Pan: 0.1°/s-60°/s , tilt: 0.1°/s-30°/s rotation speed

Support absolute control, coordinate display, preset, cruising and scan

Die-cast aluminum alloy housing, IP66 ingress protection

Overview

BIT-TVC4516-1930-IP, a long range visible and thermal imaging dual vision PTZ camera, is a PTZ camera specially designed for special industry application, capable of supporting visible camera with 1080P HD resolution with 4.3~129mm lens and 384*288/640*512 uncooled thermal camera with 31mm~155mm lens. In combination with 360 degree continuous rotation high precision pan tilt unit, this dual sensor PTZ infrared camera is capable of providing 24 hours real-time security situation awareness with detection range up to 8.6km.

With its built-in industrial grade electronic control system, major functions like zoom, focus, video switch and P/T movements can be easily operated. Its IP66 ingress protection ensures its great performance 24/7 at all-weather condition.

Application Scenario: Applicable in large-scenarios, such as: smart city, high-spot watching, mobile&traffic, railway&freeway, prison, harbor, maritime, plant, oil fields, electricity, public security and fire-fighting, forest fire prevention, scenic sights and etc.

Technical Specifications

Model

BIT-TVC4516W-1930-IP

Detection

Vehicle: 10,200m/Human: 2,700m

Identification

Vehicle: 2,400m/Human: 1,300m

Thermal sensor

VOx uncooled detector, 384*288 (640*512 optional)

7.5um-14um spectral response, 50mk NETD

Thermal lens

31mm～155mm, 5X zoom

Motorized zoom and auto focus

Fov（H）

11.2°～2.2°

Image processing

2X digital zoom; AGC; 10 pseudo color; SDE image enhancement

Visible sensor

1/2.8'' CMOS

0.01lux color to B/W

2.1MP ,1920X1080

Automatic ICR switch

H.265/H.264/MPEG4/MIPEG

32Kbps~16Mbps, 60Hz, 30 FPS

Visible lens

4.3～129mm, 30X zoom

Motorized zoom

DC8-12V

For penetration

Not support

Housing

1. Material: High strength aluminum alloy housing, waterproof seal, avoid the growth of mold and moisture generated

2. Structure:Integrated double-window design

3. Surface coating: PTA three-resistance coating, corrosion resistance

4. Built-in thermostat, design of thermal equilibrium

5. Interface: Aviation waterproof connector

Pan Tilt

Pan: 360° continuous rotation，tilt: -75°～40°

Rotation speed: Pan: 0.1°～60°/S, Tilt: 0.1°～30°/S

Positioning accuracy: 0.1°

Advanced movement: 200 preset positions, cruising track, pattern tour and auto scan

Support coordinate query/feedback, angle real-time display and absolute control, zero position correction

Interface

1*RJ45. 10M/100M adaptive Ethernet port (include thermal+HD visible+RS485)

1* AC24V/DC24V

Video format

H.265/H.264, Dual video output

Protocol

TCP/IP、HTTP、DHCP、DNS、DDNS、RTP etc.

Support ONVIF2.4

Pelco-P、Pelco-D, Baudrate 2400、4800、9600、19200 optional

Power supply

AC24V/DC24V±10%, 50Hz, 150W, Standard AC220V->AC24V power supply

Environment

1. Operating temperature:-40℃～+65℃

2. Storage temperature:-40℃～+65℃

3. Humidity:<90%

4. Anti-lighting: built-in auto Fuse-protected device, power 4000V, signal 2000V

5. Ingress protection:IP66

Weight

≤25kg
