Outdoor Cost-Effective Variable Speed Medium Duty Pan Tilt Head Positioner Max. 15kg (33.07lb) Load

Features of BIT-PT520L Cost-Effective Outdoor Variable Speed Medium Duty Pan Tilt Head with Payload up to15kg (33.07lb)


  • Maximum top load capacity 15kg (33.07lb)

  • Pan angle: 0-360°, tilt angle: -60°~-+40°

  • Pan speed: 1°～9°/S, tilt speed: 1°～4°/S

  • Preset accuracy: ±0.5°

  • High precision stepper motor, gear drive transmission

  • Self-lock with memory after power failure, strong wind-resisitance

  • RS485 or RS422 pan tilt control with Pelco P/D protocol

  • Support position feedback and absolute position

  • Rated IP66 for dust and water ingress


Contact Us

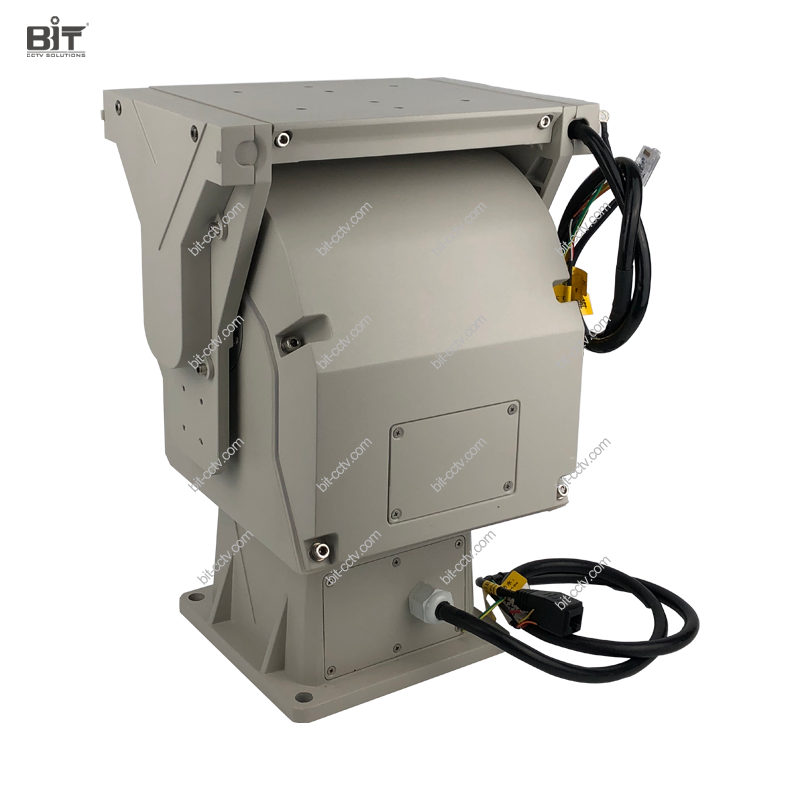

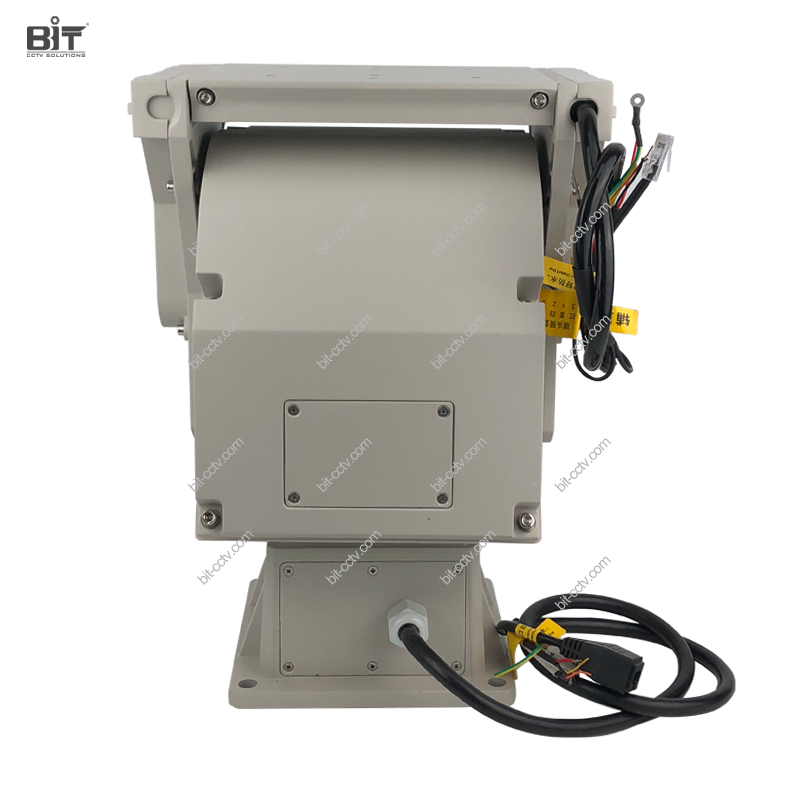

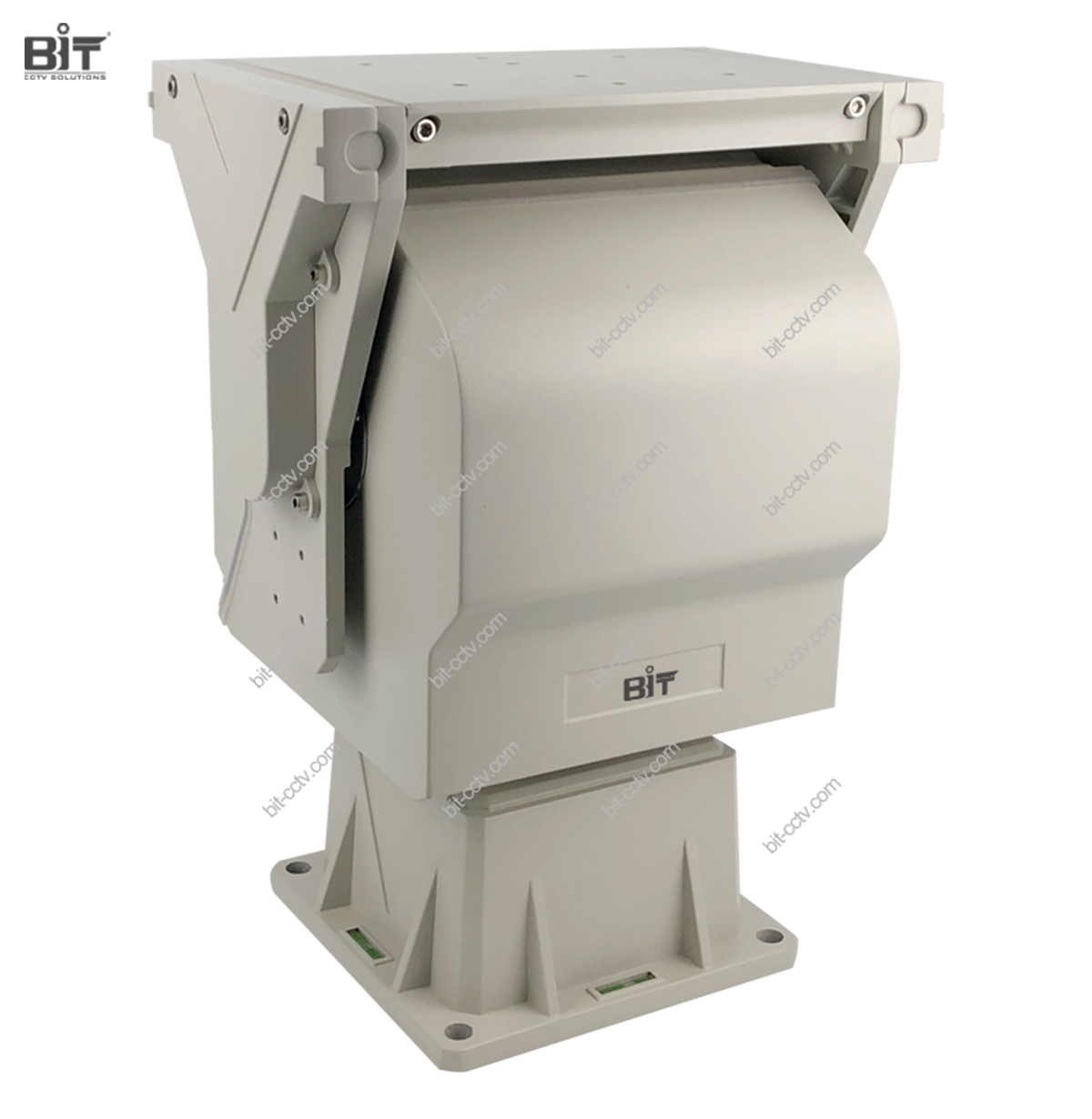

Overview of BIT-PT520L Medium Duty Pan Tilt Head


BIT-PT520L is a cost-effective medium duty unit (Max. top load capacity 15kg (33.07lb)) by using gear drive transmission instead of worm/gear drive, an ideal choice for pan tilt positioning system with limited budget. With competitive pricing, its quality and features are still good enough to build a reliable PTZ camera. It features variable speed rotation, preset position, cruising track, patter tour, auto scan and advanced functions like coordinate feedback and absolute control.


Technical Specifications of BIT-PT520L Medium Duty Pan Tilt Head


Model

BIT-PT520L

Max. Load Capacity

15kg (30.06lb), top load

Rotation Angle

Pan: 360° continuous, Tilt: -60°~+40°

Rotation Speed

Pan: 1°/s-9°/s , Tilt: 1°/s-4°/s

Preset

200

Preset Accuracy

± 0.5°

Cruising Track

Support

Scan

Support with cruising/auto/panoramic/tilt scan

Angle Feedback/Control

Support angle query feedback/real-time feedback

Lens Preset

Support

Lens Control Speed

Continuously adjustable zoom, focus speed

Adaptive PT Speed to Zoom

Speed up while zooming out, slow down while zooming in

Guard Location

Support with 1 preset or 1 cruising track or 1 auto scan

Power Failure Memory

Support, recover to PT position, scan/preset/cruising track movement before power failure

Self-lock

Support

Protocol

Pelco P/D

Baud Rate

2400/4800/9600/19200 bps

Communication Interface

RS485 or RJ45

Transmission

Gear transmission

General

Operating Voltage

AC24V±20 %, 50/60Hz or DC24V±10 %

Power Consumption

≤60W (With heater）

Working Temperature

-40ºC～+70 ºC /-40 ºF ~ 158 ºF ( with heater)

Working Humidity

90±5% RH

Storage Temperature

-40 ºC～+70 ºC /-40 ºF ~ 158 ºF

Protection Level

IP66

Material

Aluminium Alloy

Weight

12kg (26.45lb)

Dimension

227×249×349mm（L×W×H）

8.93x9.8x13.74in （L×W×H）


Video

Dimension of BIT-PT520L Medium Duty Pan Tilt Head


Unit: mm


FAQs of BIT-PT520L Medium Duty Pan Tilt Head

  • What are the differences between BIT-PT520 and BIT-PT520L, the same look, both as medium duty pan tilt head positioner with max. 15kg (30.06lb) load capacity?

    BIT-PT520L is a cost-effective medium duty motorized pan tilt unit, a simplified design based on BIT-PT520, with gear drive transmission. And BIT-PT520 is equipped with more advanced stepper motor and worm/gear drive transmission. Compared to BIT-PT520, BIT-PT520L features smaller tilt angle, slower rotation speed and less positioning accuracy.


  • Will BIT-PT520L medium duty pan tilt unit continue its working situation if it powers on again from a power failure?

    Yes, BIT-PT520 pan tilt head features self-lock and power failure memory. It will be able to stay where it was when a power failure occurs even in windy weather and resume its movement like presets, scan before power failure.


  • Is non-continuous pan rotation feature available on BIT-PT520L cost-effective pan tilt head?

    Yes, we can customize non-continuous pan rotation BIT-PT520L pan tilt unit if continuous 360 degree pan rotation will be a problem for your system. Please let us know the angle that you prefer while placing your order.


  • Can BIT-PT520L medium duty pan tilt unit be installed upside down?

    No. It can't be installed upside down.
