Outdoor use, two side load housings for customization
Pan angle: 0-360°, tilt angle: -90°~-+90°
Pan speed 0.1~30°/s, tilt speed 0.1~15°/s
Preset accuracy: ±0.1°
Dual worm gear transmission structure, electronic anti-shake and mechanical anti-loose design
Self-lock with memory after power failure, strong wind-resistance
Support coordinate feedback and absolute control
Support lens preset, adaptive speed to zoom rate
Support analogue or network camera
Rated IP67 for dust and water ingress
Note: BIT-PT306 does not include any cameras inside housings.

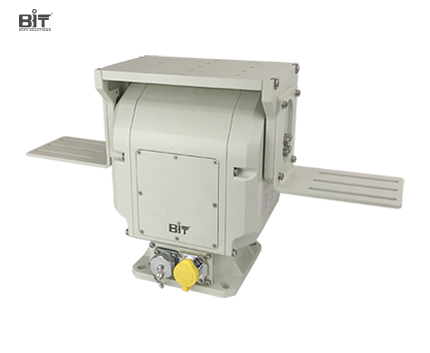

BIT-PT306 is a high profile light duty pan tilt head with two side housings for users to integrate their own devices into housing. Designed and equipped with high precision stepper motor and dual worm/gear drive, BIT-PT306 is capable of rotating endless 360°pan and ±90°tilt at a speed of 30°/s and 0.1°positioning accuracy. Meanwhile, BIT-PT306 motorized pan tilt features many advanced functions: absolute control, coordinate feedback, electronic anti-stake, preset, curising track, auto scan. It also features low power consumption (less than 40w) and IP67 ingress protection.
Model | BIT-PT306 |
Load Type | Indoor/outdoor, two side housings |
Rotation Angle | Pan: continuous 360° |
Rotation Speed | Pan: 0.1°/s-30°/s |
Programmable Presets | 200 |
Preset Accuracy | ± 0.1° |
Cruising Track | 1 |
Auto Scan | 1 |
Coordinate Feedback | Support angle query feedback/real-time feedback (optional) |
Absolute Control | Support |
Lens Preset | Support |
Lens Control Speed | Continuously adjustable zoom, focus speed |
Adaptive PT Speed to Zoom | Speed up while zooming out, slow down while zooming in |
Guard Location | Support with1 preset or 1 cruising track or 1 auto scan |
Power Failure Memory | Support, recover to PT position, scan/preset/cruising track movement before power failure |
Self-lock | Support |
Protocol | Pelco P/D |
Baud Rate | 2400/4800/9600/19200 bps |
Communication Interface | RS485 (Optional RS422) or RJ45 |
Drive | Dual worm gear drive |
General | |
Operating Voltage | DC24V±10 % |
Power Consumption | ≤40W |
Working Temperature ( with heater) | -40ºC～+70 ºC (-40 ºF ~ 158 ºF) |
Working Humidity | 90±5% RH |
Storage Temperature | -35 ºC～+65 ºC (-40 ºF ~ 158 ºF ) |
Protection Level | IP67 |
Material | Aluminium Alloy |
Weight | 4.5kg (9.92lb) |
Dimension（L×W×H） | 348×200×200mm（13.70x7.87x7.87in） |
Unit: mm
No, BIT-PT306 pan tilt head doesn’t come with any camera inside housing. These housings are for customer to integrate their own cameras.
BIT-PT306 is equipped with dual worm/gear drive for both pan and tilt direction.
Please share your camera or devices 3D/2D detailed drawings with us for evaluation to see if your device can fit into BIT-PT306 pan tilt positioner housings.
Both are acceptable. We will provide needed technical support if customers prefer to do it on their own.
